SUPOR

Feature

• Modular Design
• Grouping Scanning
• Welding Simulation
• Scan setup wizard
• Phased Array, TOFD and Conventional Ultrasound for Selection



Function:

• Modular design:Phased array module (16/32 channels),Phased array + TOFD module,Multi-channel TOFD module or conventional UT module…
• Grouping Scanning:It can be divided to up to six groups for one PAUT probe for different inspections.
• Welding simulation
• Scan setup wizard
• Real time A/B/C/D scan
• Support two PAUT probes working simultaneously with grouping function
• 8.4" touch screen LCD with resolution 800×600 pixels

Application:

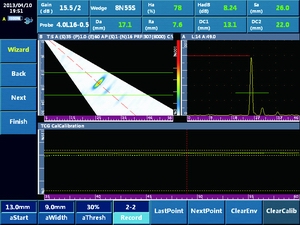

TCG Calibration

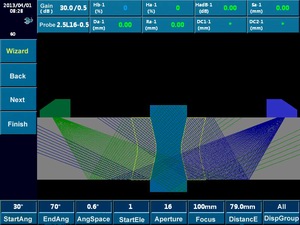

Welding Simulation Wizard

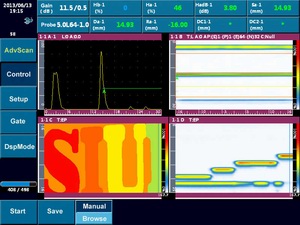

Real time A/B/C/D scan

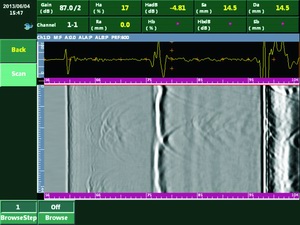

TOFD Mode
